Dual Axis Stand

Mobirise Website Builder

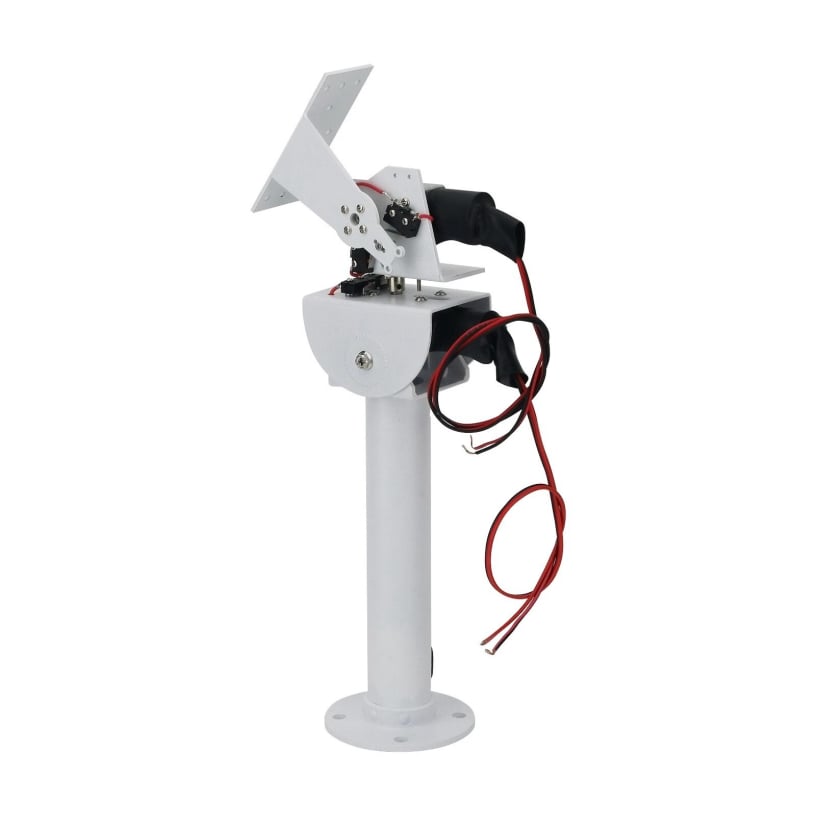

The dual axis stand was purchased from Ali Express.
The following description came from the Ali Express website.

DC 2 Axis Gimbal Accessory for Dual Axis Solar Tracker Controller Solar Tracking System Monitoring

Features:
- Load capacity: not exceeding 4kg/8.8lb at DC 24V; not over 2.5kg/5.5lb at DC 12V
- With limit switches: Automatic protection will be enabled when it reaches a specific position
- As soon as the gimbal is powered on, it will start to work.
- When the direction of the current is changed, the direction of movement will be reversed.
- The motor speed is 1RPM
- Its body is made of all-metal, and the bracket is made of ultra thick aluminum alloy with excellent stability
- Ultra-low speed gear worm motor, all metal gears and torque of 35g/0.08lb
- With self-locking, it can achieve all-round dual-axis tracking.
- There are two horizontal and two vertical limit switches to avoid tangled wires

Specifications:
- Motor name: Gear motor with worm and worm wheel
- Motor voltage: 5V-12V-24V
- Motor speed: 1RPM
- Motor power: 30W
- Horizontal rotation angle: 340°
- Gimbal specifications: Base 86mm/3.4", height 420mm/16.5", and worm 240mm/9.4"
- Vertical rotation angle: 120°
- Load capacity at 24V: ≤4kg/8.8lb
- Load capacity at 12V: ≤2.5kg/5.5lb
- Bracket material: aluminum alloy + 3mm/0.1" steel plate
- Gearbox material: metal gears
- Gimbal mounting panel: 40 x 100mm/1.6 x 3.9"

Package Included:
- 1 x Set of 2 Axis Gimbal

Packaging Details:
- G.W.: 1.2kg.

Current (Amps)

We mounted the solar panel and the LDR bracket on the stand.  Then we applied 12 volts to each motor to determine the maximum current draw during normal operations.  Here are the results.

Pan Motor: 28 mA max

Tilt Motor: 32 mA max

Since both motors can run at the same time, the maximum current under normal operations is 50 mA.

We had a 500 mA fuse.  So, we decided to use it to protect our electrical circuit.
